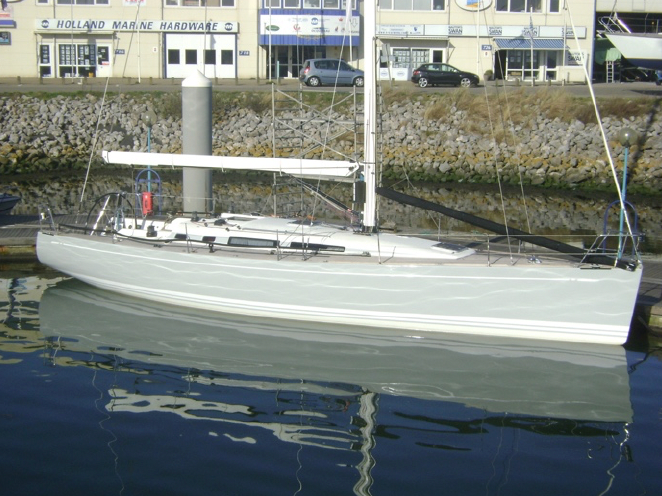

Swan 45 'Emotions'
€269,000
Specification
Yard: Nautor's Swan
Build number: #15
LOA: 13.30 m
Width: 3.91 m
Length Waterline: 12.07 m
Draft: 2.80 m
Tonnage: 9850 kg
Ballast: 3910 kg
IRC: 1.165 ORC CDL: 12.287
Tanks
Watertanks: 1 (320 Liter)
Fueltank: 1 (150 Liter)
Holdingtank: 1 (60 Liter)
Description
Swan 45 – 015 Emotions (formally Motions) is for sale €269,000. She is the 2020 and 2021 World Champion! A stunning yacht in excellent condition, she has been continually upgraded including a new mast in 2016. Very competitive under IRC/ORC, she is ‘race ready’ for her new owner.
Boat Video
Upgrades & Modifications
Spars & Rigging
MAST & RIGGING
I= 18.80 m 61.68 ft
J= 5.40 m 17,72 ft
P= 18,66 m 61.22 ft
E= 6.65 m 21.82 ft
SPL = 5.43 m 17.81 ft
Fore Triangle= 50.8m2 546 ft2
Main Sail= 76.4 m2 823 ft2
Jib= 54.7 m2 589 ft2
Spinnaker= 153 m2 1647 ft2
New Hall Spars carbon fiber two spreader mast (2016 15/16 fractional rig, spreaders swept 20 degrees.
Carbon fiber boom & spreaders All painted in white Awlgrip.
Tuff Luff
Single line reefing
Harken jib furler with separate forestay
German mainsheet system
- 2x white painted carbon fiber Hall Spars double taper spinnaker pole, track and tackle on mast with: - 2 spinnaker guys Spectra 12 mm
- 2 spinnaker sheets with tweakers Spectra 8 mm
- 1 downhaul with double end Spectra 10 mm
- Spinnaker pole fittings on deck
Spinnaker halyards at mast head
Discontinuous shrouds Navtec rod. Deck turnbuckles Series 800
Combined mainsail luff groove and track system
Custom inhauler system
Custom made under deck gennaker barber haul system led to cam cleat in cockpit coaming
Car puller system with custom cam cleat in cockpit coaming
2 x Navtec 2 speed, hydraulic panels
24” hydraulic cylinder for the backstay
Quick release for backstay
Windex with light at mast head, 2 coaxial cables
Lazy jacks
Windex with light at mast head, 2 coaxial cables
Running rigging inventory available upon request
Construction
Keel, Rudder & Steering
Antimony alloyed lead bulb and fin with upper flange recessed into hull.
Fin bolted to hull with high tensile steel bolts.
Keel is faired to Zero Tolerance with template control
Rudder & Steering System
Foam filled rudder with carbon/epoxy stock.
Aluminium quadrant.
Vectran cable steering with roller bearing sheaves.
Composite pedestal integrated with cockpit sole.
Carbon Fiber 1600mm recessed steering wheel 0.9 turns H.O. to H.O.
Alloy emergency tiller
Hardware & Exterior
HULL & APPENDAGES
NGA-type gelcoat in grey, cove and boot top stripes white
Glass / vinylester laminate with carbon reinforcements
Sandwich topsides and single skin bottom
Fiber reinforcements are multiaxial or unidirectional.
Structural bulkheads are of veneered sandwich construction or marine grade waterproof plywood.
Bottom stiffeners reinforced with unidirectional carbon and multiaxial grassfire in selected areas.
GRP engine beds.
Composite mast step with movable shoe.
Stainless chainplate deck fittings
Deck
Advanced laminate sandwich deck with unidirectional skins and low density closed cell foam core.
Esthec deck
Gas bottles in port side locker
Deck Equipment
Stainless steel pushpit, pulpit and stanchions
600 mm high life lines
30 mm high teak toe rails forward of mast.
Composite mast collar.
Headstay attachment on stemhead.
Folding eyes for harness attachment in cockpit
Hatches & Ports
Main companionway sliding hatch garage flush with coachroof.
Cockpit hatch for steering system access.
1 Saloon overhead hatch Lewmar size 60
1 Foredeck hatch Lewmar size 60
1 Ventilation hatch in fwd head Lewmar size 03
4 Fixed coaming windows
4 openable coaming portlights - in aft cabin, aft head, galley and navigation area 1 portlight from
aft cabin to cockpit
1 hatch for gas bottle locker
Anchor stowage hatch
Tinted acrylic main companionway sliding hatch with custom drop-down washboard
Winches
Primary sheet winches: Harken 56 STOR three speed
Mainsheet winches: Harken 56 STOR two speed
Halyard winches: Harken 48 STOR-SR two speed
Lewmar anchor windlass, removable with covering plate (not mounted)
Sailing Hardware
Harken aluminium jib sheet tracks
Harken aluminium main sheet track
Harken halyard lead blocks
Harken foot blocks for genoa
Spinlock clutches
Interior
Single beds: 2
Double beds: 2
Cabins : 2
Toilets: 2
Bathrooms: 2
Floorboards of sandwich construction
Lightweight overhead paneling
Wrapped bulkheads and topsides in forward and aft cabins
Wrapped bulkheads and topsides in main cabin
Lee cloths for berths in cabins and main cabin
Grey cushion covers for salon cushions + complete set of black sky cushions for racing.
Forward Cabin
Double berth with filler for centre
Hanging lockers and seats
Foam mattresses over Scandi-Flex berth bottoms
Reading lights for each berth
Forward Head
GRP moulding to half height
Water tap, shower, mirror and waste bin
Manual Seawater flushing WC
Integrated shower
Aft Cabins port side aft
Double lower berth
Lower berth supported by scandi-flex battens Lockers under lower berth
Hanging Locker
Reading lights for each berth
Aft Head Starboard side
GRP moulding to half height
Water tap, shower, mirror and waste bin S
Manual seawater flushing WC
Integrated shower
Galley
Gimbaled two burner stove with oven and stainless steel protection bar
Two stainless steel sinks with Oras mixer tap
Corian Cameo White counter tops and sink covers
Drawers and lockers
Front loading 70 litre refrigerator
Top loading 60-litre freezer/refrigerator
Garbage bin
Saloon
Carbon wrapped folding leaf table with fiddles
Lockers outboard both sides
Settee backs lift to form pilot berths both sides
Nav Station
Forward facing chart table with seat
Chart stowage under table top
Drawers under table
Foulies locker
Engine, Mechanical
& Electrical
Volvo Penta Marine diesel D2-55, 39 kW, 53 HP at 3.000 RPM,
Saildrive and 2-blade, folding, racing propeller
Aluminium 150 ltr fuel tank plus additional 60litre fuel tank, total capacity 210L Engine box
removable for access
Engine remote start in cockpit
Plumbing & Ventilation Systems
Composite Flowtech sea cocks for all through hull fittings below waterline
Water and fuel tank level indicators
Aluminium 320 ltr water tank in three interconnected compartments
Hot and cold pressurized water with backup foot pump
Deck air inlet for engine area.
Exhaust outlet through transom with extractor
Seawater foot pump in galley
Drainage System
2 manual bilge pumps and 1 electric bilge pump
Whale gulper pumps for sump tanks in each head
60 ltr holding tank for forward both WC’s
“Y” valve in forward head
ELECTRICAL SYSTEM
12 V DC electrical system with insulated return
6x2V battery bank for general service in vented box under saloon table
Extra 6x2V lightweight battery bank (-30kg)
12 V 46 Ah engine starter batteries in service battery box
Mast foot, shrouds and stays grounded on the keel
12 V DC refrigeration
12V DC Main electric control panel at chart table 1
2 V outlet at navigation and in cockpit
One reading light above each berth
Recessed halogen dome lights overhead
Flexible chart light and red night light a navigation station
Separate main entrance light
Switches for headlights and masthead light in cockpit
Navigation Lights
AC System
Shore power supply 230V, 25 A with 15m cable and deck connection
Chargers/Inverters
Battery charger Mass 12/80
Inverter Mass 12/1200
130 A service alternator with 3-way regulator and 60 A alternator for starting
Electronics
Year 2021
B&G H5000 CPU, with Hercules Software
B&G Motions sensor
H5000 Speed sensor
Simrad Rudder angle indicator
Diverse marine loadcell for forestay
Year 2020
3x Garmin GNX 120 multi function displays in carbon mast bracket
2x Garmin GNX 120 multi function cockpit display
Analytics;
Annalisa performance server.
Note: To enable the full potential of the system, a laptop based expedition license is advised, for
navigational and calibration purposes. And an iPad to pair with the function as interface to the annalisa.
Covers
2x Mainsail cover
Wheel cover
Sheet/halyard storage bags Cushion covers
Table cover
Entry cover
Complete deck cover (2021)
Interior protection covers for:
- Kitchen
- Chart table
- Forward Cabin
Safety
Sails
Cruising sails:
Mainsail Dacron (North Sails)
Jib Spectra
Racing sails:
MN1 141 2012 NS
MN2 240 2015 NS
MN3 518 2017 NS
MN4 26/2019 2019 NS 1000930-001 3DI Raw 780/19600
Jibs
L1 142 2012 NS
L2 277 2016 NS 100674-002
L3 269 2016 NS 1885-002
L4 27/2019 2019 NS 100930-002 3DI Raw 780
M1 143 2012 NS
M2 239 2015 NS
M3 508 2017 NS 100774-001
M4 03-2020 2020 NS ONL 202551-001 Mi-4
H1 144 2011 NS
H2 191 2014 NS 107341-004 No Limits (flat)
H3 273 2015 NS 1886-006 (round)
3.5 503 2011 NS
OSR HWJ 186 2013 NS 1885-003
Spinnakers
A1.5A 108 2011 NS
A1.5B 276 2016 NS
S2A 109 2011 NS
S2B 187 2014 NS 4004711-1
S2C 272 2015 NS 1886-004
S2D 01/2019 2019 NS 100912-001 'Heavy' - SK75 leeches
S2E 04-2020 2020 NS ONL 202551-003 'Light' - SL 50 body / S2C design
S4A 110 2011 NS
S4B 188 2014 NS
Staysail 148 2007 NS 66016739 08 Recut 2018
Staysail 2020 NS ONL 202551-002 SST-2
Extras
Engine Spares
Passarelle
Dock boxes,
Swimming ladder
sprayhood
One boathook
Anchor light and cable
Winch handle holders
Winch Handles
Flagpole
Fenders
Mastjack
Tuning guide
Cockpit table
