TP52 'Imagine'
€ 750,000
Specification
LOA: 15,85 mts
Beam: 4,42 mts
Draft: 3,35 mts
Displacement: 7300kg
IRC: 1.391
Builder: KING MARINE S.A. Valencia - Spain
Year built: 2012
Designer: BOTIN & PARTNERS TP-52-2012 generation
Flag: German flagged EU VAT paid
Lying: Greifswald, North-east Germany.
Description
The TP52 'Imagine' is now on the market and ready for a new home. From the Botin drawing board, this 2012 ex Azzurra Super Series 52 has had very light use over the last 11 seasons (essentially 5 seasons without any sailing) and always dry stored in a shed with professional, top-level maintenance. Built at King Marine in Spain, she was the winner of the 2012 Med Cup (ex Super Series).
She has been meticulously optimized and refined to compete at the highest level under both IRC and ORC rating rules. She is optimized for both Inshore and Offshore races and is EU VAT paid.
Boat Video
Upgrades & Modifications
UPGRADES
5 x Quantum Sails new in 2025 - Inshore & Offshore mains / BRO / A4 / J4
Inshore & offshore setups
Additional carbon structure added – bow stringers and mast/boom reinforcements
Major upgrade of water proofing and bilge pump systems to improve offshore water ingress
Starlink coms / B & G & Garmin instruments
Offshore safety equipment Cat 2
HISTORY
2012 – 2014 / Azzurra - 52 Super Series Champions.
2015-2019 / Matador - optimized for day-sailing, always dry stored and used less than 20 days in 5 years.
2020-2025 / Imagine – huge modifications and optimization for offshore and inshore racing. Always dry stored at the yard with just about 15 days of sailing each season (1-2 events).
Spars & Rigging
MAST, BOOM & BOWSPRIT
2012 TP-52 generation Southern Spars carbon rig - 3 spreader configuration.
Mast locks - Main, 2 x MH, Jib (external), GS (external)
Harken Track for Batt-cars Slides, or internal groove for mainsail luff tape bolt rope
Internal Hydraulic ram for mast jack adjustment w/ Enerpac pump
Cariboni hydraulic forestay ram
Nitronic standing rigging
Reinforcements for 2 reefs, GS and fractional Spin halyard
Rig upgraded to EC6 runner cables (new service in 2025)
New Armare PBO runner cables (2025)
Southern Spars Carbon boom package with 2 reef locks
Carbon fibre vang tube
CLC Carbon STL 9.00m Prod with 2 Tacklines, max. tackload 2.5 T
CLC Carbon Bobstay
RUNNING RIGGING
Full set of inshore & offshore Grand Prix sheets and halyards, control lines, tweakers, runner tails, etc.
Grand Prix spare sheets, runners, halyards, etc.
Construction
Keel, Rudder & Steering

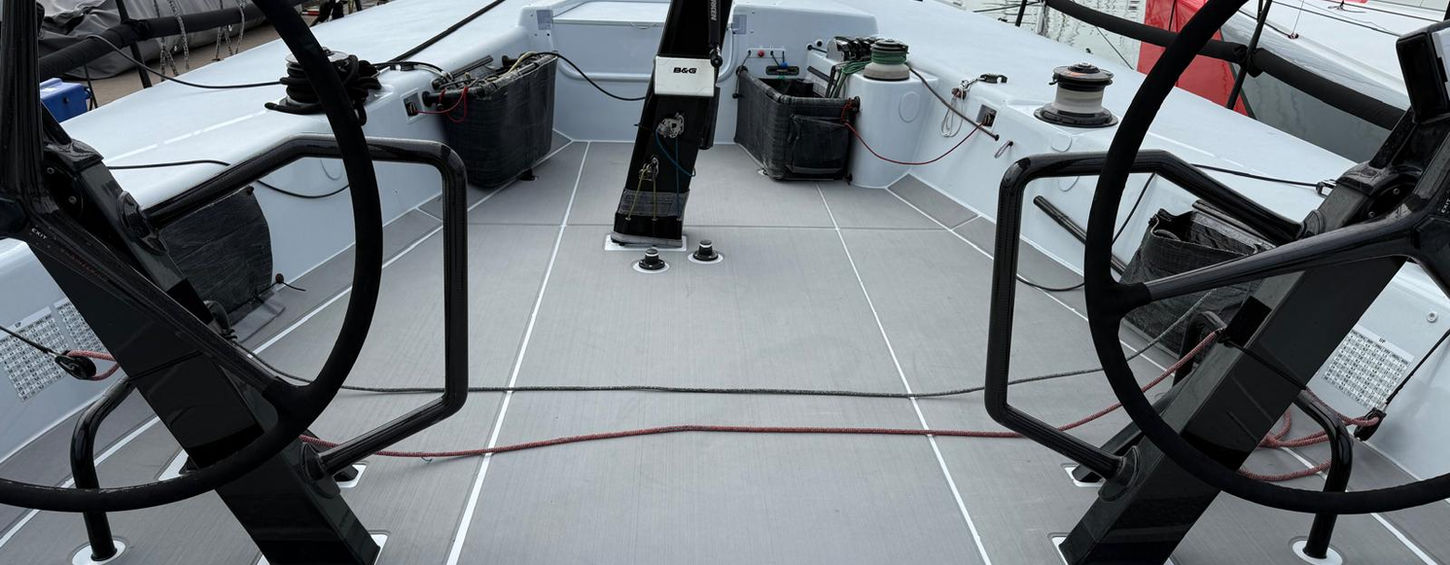

2 x Carbon Steering Wheels made by Exit Engineering
1 x Carbon Rudder blade 52 SS made by King marine with JP-3 racing bearings (for tiller and wheels)
1 x Carbon Rudder blade Cruising made by King marine with JP-3 racing bearings (for wheels)
CNC Refraschini Italy made Steel Finn spade
CNC Lead Bulb
Stainless steel Internal structure
Hardware & Exterior

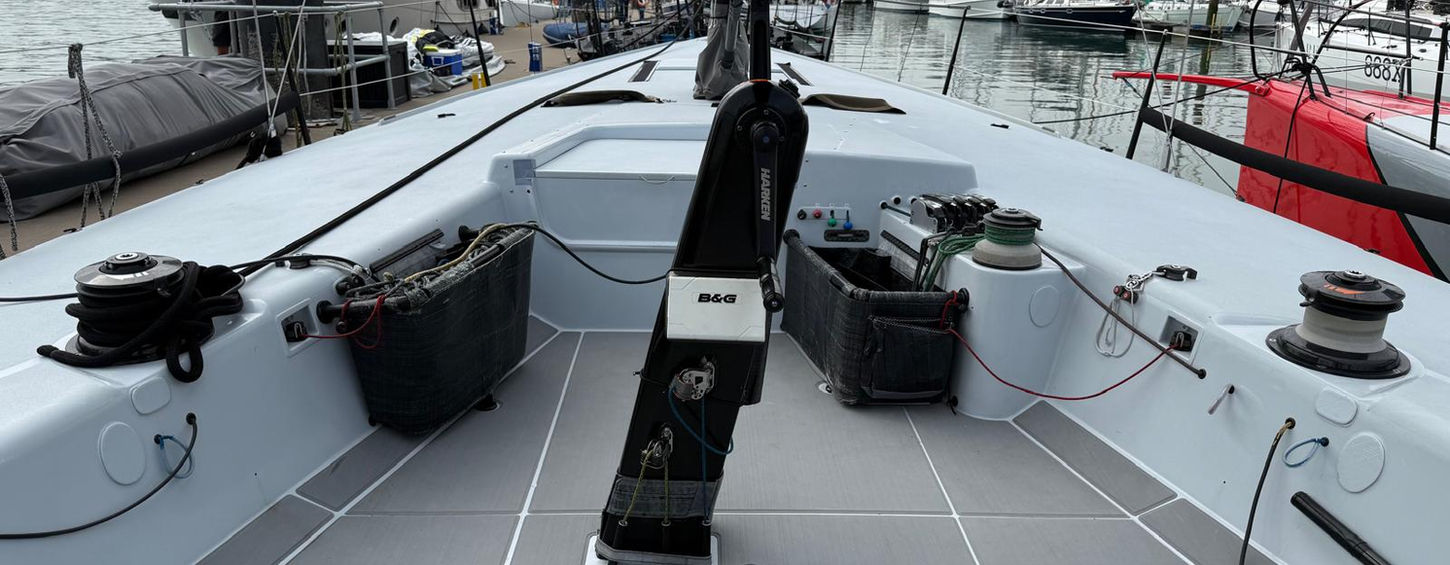

WINCH & PEDESTAL SYSTEMS
6 x 650 self-tailing winches with ceramic drums – Primaries and port main winch driven by pedestals
1 x 500.2 Self-tailing pit winch with ceramic drum
2 x Harken Carbon Grinder pedestals chain driven with overdrive selector
Harken winch system with gearboxes, overdrive 1.4-gear box w/ X- joint, drive shafts, 4 disconnect buttons
6 x Harken/Lewmar winch handles
GEAR AND OTHER EQUIPMENT
Harken Pro Trim Traveller
Jib Tracks with internal in/out control line adjustment from jib trimmer position and waterproof carbon boxes below deck
Jib Cunningham and up/down control lines on forward primary winch pedestal
Vang control line
Hydraulic pump handle on starboard jib trimmer position for headstay adjustment
Mainsail control lines for outhaul & cunningham on foot rest at main trimmer position
3 x Spinlock Stoppers XCS clutch (jib & staysail + Spin sheets)
4 x Spinlock XXC-0812 power clutches for halyards (2 x MH Spin halyards +1 x Fractional halyard +1 x Tackline)
Composite stanchions and stainless steel bow pulpits and stern push pits & central stanchion
6 x Custom made tail bags
8 x custom made adjustable carbon offshore bunks
2 x custom made carbon tubes with 15 clip-on hooks for personal gear
Custom made forehatch with take down roller
Offshore front hatch cover
Inflatable front hatch seal with compressor, above and below deck functionality
2 x spin sheet take up reelers & 1 x Spinnaker halyard take up reelers
FURLERS
1x Karver 1.5 T GS 3:1 furler with head swivel with integrated sheave
1x Morfrac 1.5 T SS custom made below deck furler with endless furling line and head swivel
1x Morfrac powerfurl.[four] with head swivel
Interior
Engine, Mechanical
& Electrical
ENGINE
Yanmar 54hp
Yanmar SD40 strut sail drive
Gori 2 blade
BATTERIES & ELECTRONICS
2 x new Lithium light weight battery with management system
1 x starter battery
Battery Charger
Starlink coms
Hand-held VHF radio
Fixed VHF radio
Electronics
B&G H5000
Chart plotter 7“ NSO Zeus2
Adjustable custom made carbon nav station with tablet
GPS trimble
Starlink mini
LTE antenna
Wifi router
4 x 30/30 B&G mast displays
3 x B&G H5000 Graphic displays (pedestals + steering wheels)
B&G 1,5m MHU 1450 mm
B&G speed sensor
B&G depth sensor
B&G load cell pin forestay
B&G compass RC42N
Covers
SeaDeck cockpit light grey with traveller trim numbers and cockpit deck covers
Offshore bags for personal gear
Boom cover
Mainsail cover
Full set pedestal and winch covers
Halyard tail bags
Floor cover bow area
Padded transport covers for rudder
Safety
1 x 10 and 1 x 6 Ocean Safety life rafts
16 x life jackets
All other safety items required for CAT2
Sails
Mains
1x Quantum M7 Main Inshore (2025, used in 1 event)
1x Quantum M7 Main Offshore with 2 reefs (2022, used in 2 events)
1x North 3Di Inshore (2019, used in 4 events)
1x North 3Di Inshore (2018, used in 5 events)
1x North 3DL full battened with Tafetta Delivery Main with cars and 1 reef (2014)
Jibs
1x North 3Di J1 (2020, used in 3 events)
1x North 3Di J1.5 (2020, used in 3 events)
1x North 3Di J2 (2022, used in 2 events)
1x North 3Di J3 (2018, used in 5 events)
1x Quantum J4 (2025, used in 1 event)
1x North 3Di GS (2018, used in 4 events)
1x Quantum SS (2019, used in 4 events)
Downwind
1x North A1 (2018, used in 2 events)
1x North A1.5 (2020, used in 3 events)
1x Quantum A2 (2020, used in 3 events)
1x North A2 (2022, used in 2 events)
1x Quantum A4 (2019, used in 2 events)
1x Quantum A4 (2025, used in 1 event)
1x North A5 (2014, Fractional, used 2 events)
1x Quantum M7 cableless MHO (2021, used in 4 events)
1x Quantum M7 BRO (2025, used in 1 event) with cables
Trysail and Storm jib
Many more training sails (jibs & kites)
Extras
Galvanized Adjustable cradle (2 heights) with legs/splashes
Spare stanchions; spare lifelines
Electrical and mechanical bilge pump system onboard
2 x Custom quick install Jet boils
Dehumidifier
Results Snapshot
5th in the Rolex Fastnet Race 2025 Admirals Cup 1 class (IRC)
6th overall at Gotland Runt 2022 (SRS) and several podium places in ORC championships with her largely Corinthian crew.
